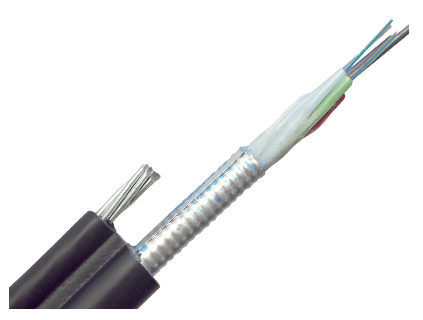

8 Aluminum tape armored outdoor optical cable

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, thisart of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
1.Accurate fiber excess length ensures a good performance of tensile strength and temperature.
2.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
3.High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
4.The following measures are taken to ensure the cable watertight:
5.Single steel wire as the central strength member
6.Loose tuble filling compound
7.100% cable core filling
8.PSP enhancing moisture-proof
