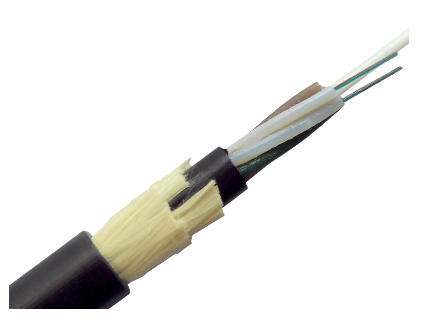

Outdoor optical cable(ADSS)

ADSS power optical cable adopts loose tube stranded. Optical fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a Water-blocking filling compound. The tubes(and fillers) are stranded around FRP as a non-metallic central strength member into compact and circular cable core. After the cable core is filled with filling compound, it’s covered with a thin polyethylene(PE) inner jacket. After two layer of Aramid yarns are applied in two directions over the inner jacket as strength member, the cable is completed with PE or AT(anti-tracking) outer jacket.


1.Accurate fiber excess length ensures good mechanical and temperature
2.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber
3.Specially designed compact structure is good at preventing loose tubes from shrinking
4.The loose tubes and all interstices of cable core filled with moisture-proof and water blocking compound ensure no longitudinal water ingress
5.PE(Polyethylene) or AT( Anti- tracking) outer jacket can resist deterioration from ultra-violet (UV) rays
6.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
7.Large span lengths and the largest span is over 1000 meters
